Hoenle Bluepoint LED Eco Point Source Unit

SKU

HOLA10022*

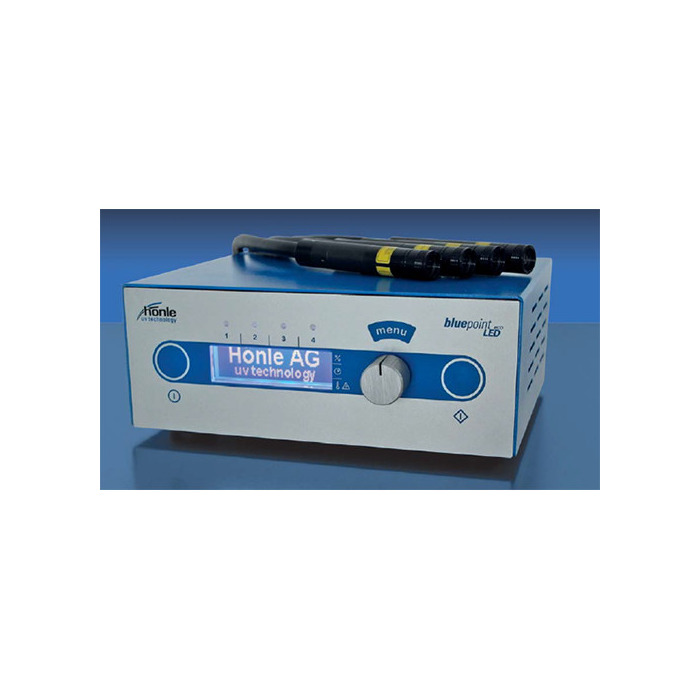

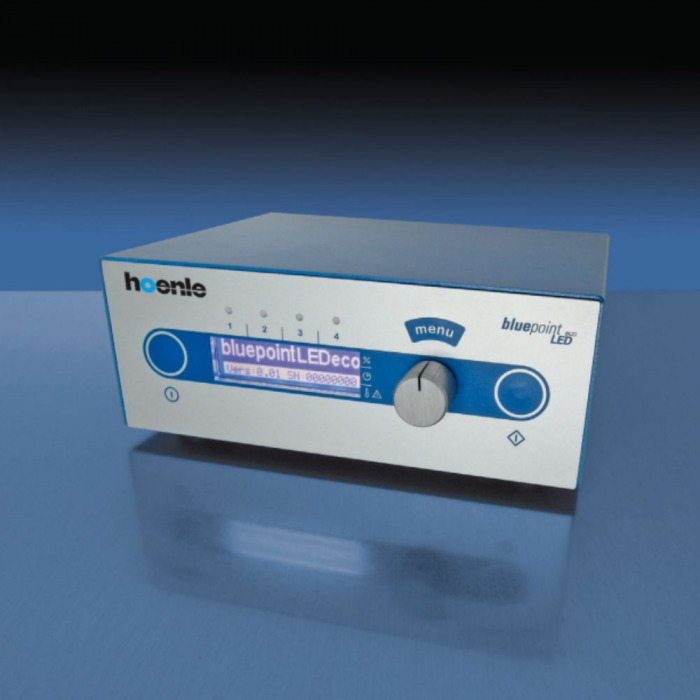

Bluepoint LED Eco Control Unit

The bluepoint LED Eco Control is a high-intensity spot curing system with the ability for multi-heads to be used. It has been developed for applications that need intensive UV irradiation. Thanks to its high intensity and the possibility to program complete process sequences it is possible to achieve the shortest cycle and machine throughput times with this unit.

The bluepoint LED Eco can be used in fully automated production lines as well as in laboratory situations for manual irradiation. Suitable for a wide array of applications including the bonding, fixing or encapsulating of components in the electronic, optical or medical sectors; fluorescence stimulation for materials testing and picture processing; high intensity UV irradiation in the chemical, biological and pharmaceutical sectors; as a UV irradiation for different applications in a clean room.

Product Features

Typical service life of LED's is longer than 20,000 hours

LED's can be switched on and off with no warm-up or cooling phase, saving time & energy

Attach up to four LED heads and control separately, emitting different wavelengths

Program complete process sequences with the unique Process FLOW Control

Dimensions: 65 x 160 x 130mm

Weight: approx. 500gm

Available in a range of Wavelengths
