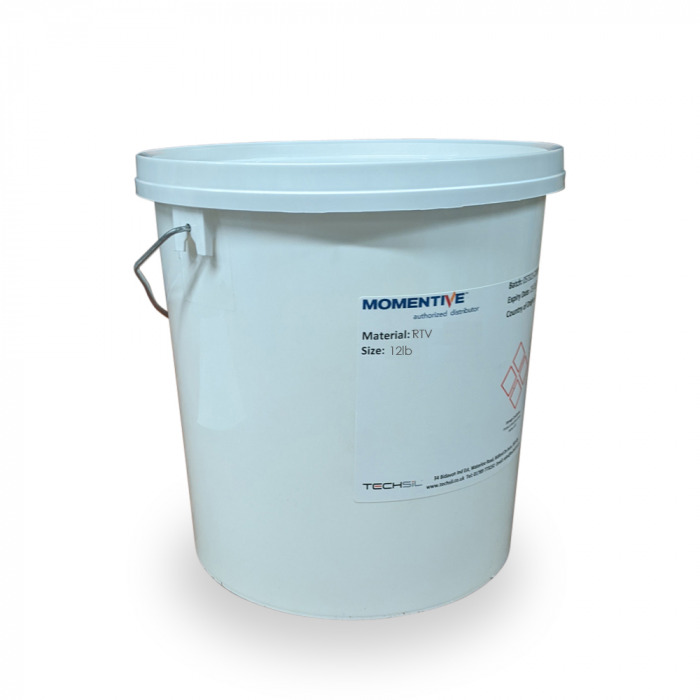

Momentive RTV560 Red High Temp Electronic Silicone 12lb (5.48kg)

RTV560/DBT 12lb/5.48kg KIT
£2,196.79 £1,830.66

RTV560 is a silicone rubber compound from Momentive Performance Materials. It offers excellent release properties and also good adhesion capabilities with the use of a primer. This grade will cure at room temperature and retains its elastomeric properties across a very wide temperature range.

RTV560 is well suited to applications which require low and high temperature bonding, the potting and encapsulation of electrical assemblies, thermal insulation applications and cast-in-place heat shielding.

RTV560 is a base compound and is generally recommended for use with a DBT (dibutyl tin) catalyst as the standard curing agent, this can be added to your order seperately. DBT is suitable for most applications however other catalysts are available to facilitate deep section or faster cure times.

Product Benefits

  • Room temperature cure
  • Variable work time and cure rates possible
  • Solvent free
  • Excellent release properties

  • Technical Properties

  • Uncured Consistency:Pourable
  • Colour: Red
  • Cured Shore Hardness: 55 Shore A
  • Elongation: 120%
  • Dielectric Strength: 21.2kv/ mm (540 v/mil)
  • Operating Temperature: -115°C to +260°C
  • Thermal Conductivity:0.31 W/mK
