Momentive TIA350R Thermal Silicone Adhesive 1.04kg

SKU
MOSI17210
TIA350R 1.04kg (2.29lb) Cart
Request Price

Momentive TIA350R is a one-component, heat curable silicone adhesive designed for thermally conductive applications. This grade cures quickly upon exposure to heat and adheres well to a wide variety of substrates.

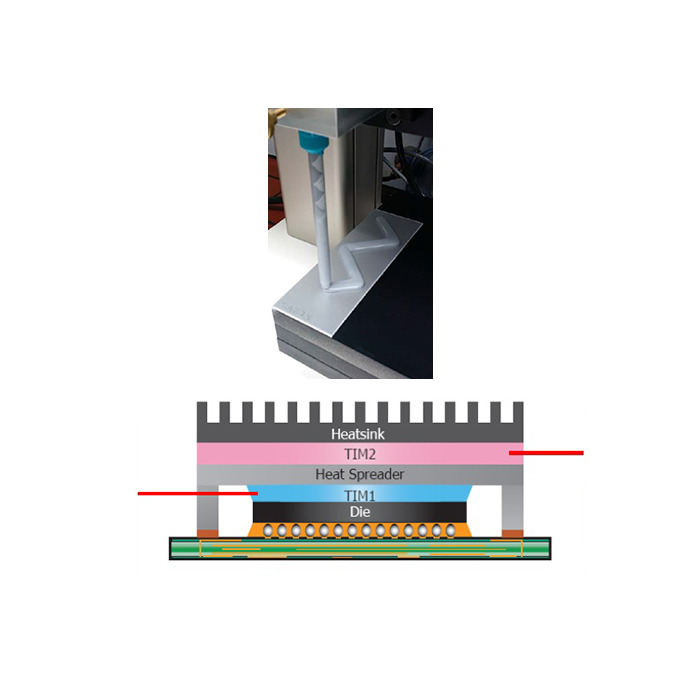

Recommended for use as a thermal interface material between dies and heat spreaders, also suitable for use as an adhesive between various heat sources and heat dissipation devices.

Product Benefits

  • Good Thermal Conductivity
  • Low temperature, fast cure
  • Easy to use
  • Electrically insulative
  • Non-corrosive to metals
  • Primerless adhesion to many substrates

  • Technical Properties

  • Uncured Consistency:Grey Paste
  • Viscosity (@23°C):67 Pa.s
  • Cured Shore Hardness:72 A
  • Thermal Conductivity:3.5 W/mK
  • Thermal Resistance:24 mm2.K/W
  • Dielectric Strength:20 kV/mm
  • Tensile Strength:2.2 Mpa
  • Elongation:30%
  • Adhesion Strength:1.0 Mpa
  • Operating Temperature:-40°C to +200°C
