3M VHB Tape Selection Guide: How to Choose by Substrate, Temp, & Series

26 Nov 2025 Updated at 27 Nov 2025

Choosing the correct 3M™ VHB™ (Very High Bond) tape is the most critical step to ensuring a permanent, high-strength bond that can last decades in harsh conditions. Since there are dozens of products across several different VHB™ families, an expert selection process requires a systematic approach based on your application's technical demands.

This guide provides a definitive 4-Step Decision Framework based on the most important performance characteristics: Substrates, Environment, Stress Load, and Aesthetics.

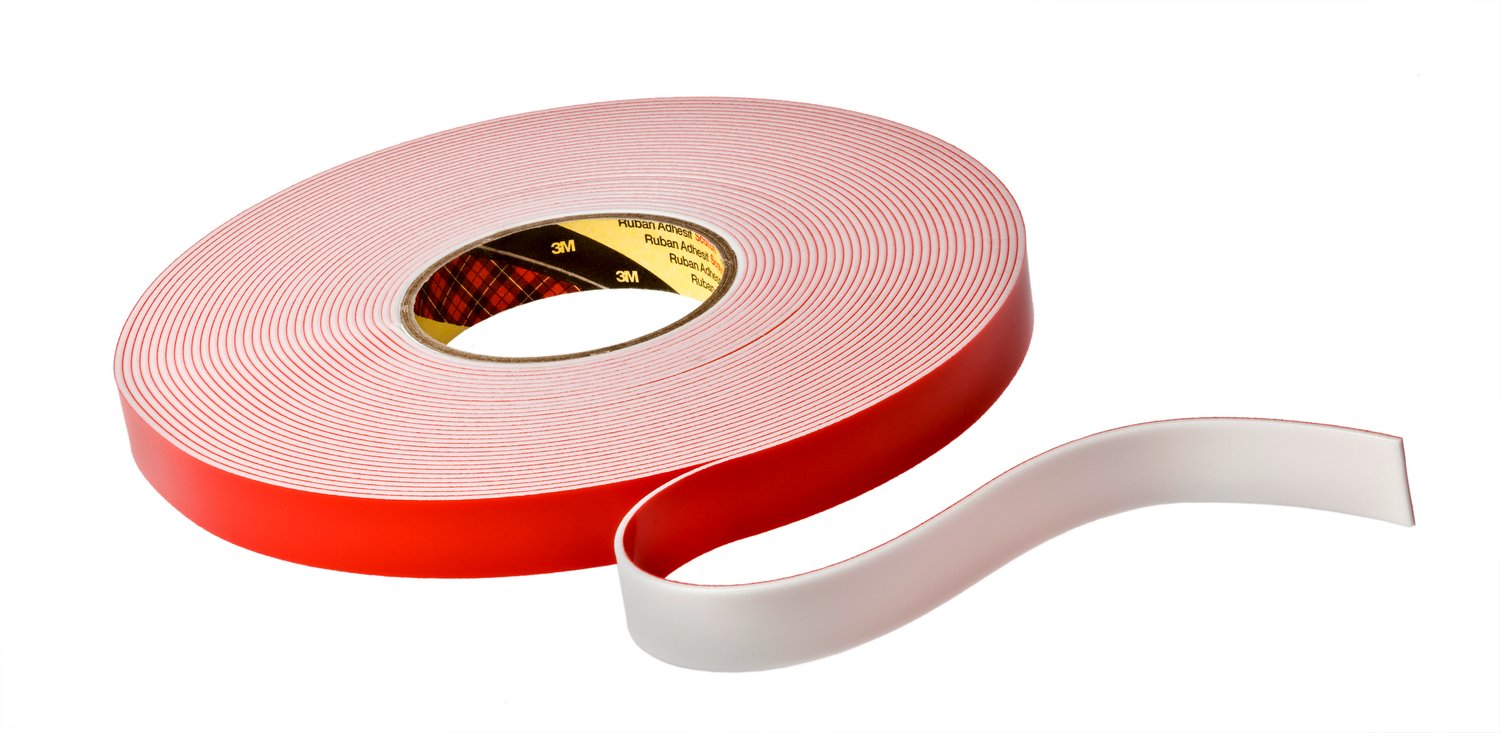

tape

Step 1: Identify Your Substrates (What are you bonding?)

The first and most important factor is the Surface Energy of the materials you are bonding. This determines which fundamental VHB™ family you must use.

Substrate Type	Surface Energy	Recommended VHB™ Series	Key Tapes
High Surface Energy (HSE)	High	4900/4600/4910 Series	4950, 4941, 4611, 4910 (Clear)
Medium Surface Energy (MSE)	Medium	5900/4941 Families	5952, 5925
Low Surface Energy (LSE) & Difficult Plastics	Low	LSE Series	LSE-110WF, LSE-160WF
Plastics containing Plasticizers	Variable	9473PC/RP Series	9473PC (Plasticizer Resistant)

Understanding VHB™ Families for Substrates

HSE (High Surface Energy): These are easily bonded materials like bare metals (aluminum, stainless steel), glass, ceramic, and high-energy plastics (PVC, ABS, Acrylic). The core strength of the tape is the primary concern here.
LSE (Low Surface Energy): These are difficult-to-bond plastics such as polypropylene (PP), polyethylene (PE), and some powder coatings. The specialized VHB LSE Series is formulated with a unique adhesive to "wet out" and adhere to these surfaces, often without the need for a primer.

Step 2: Define the Environment (Temperature & Moisture)

Environmental conditions, particularly temperature exposure, will immediately narrow your choices. You must consider three distinct temperature metrics:

Application Temperature: VHB™ tapes are Pressure Sensitive Adhesives (PSA) and require proper "wetting out" on the substrate. The ideal application range is $\text{21}^\circ\text{C}$ to $\text{38}^\circ\text{C}$ ( $\text{70}^\circ\text{F}$ to $\text{100}^\circ\text{F}$ ). For most VHB™ tapes, the minimum application temperature is $\text{10}^\circ\text{C}$ ( $\text{50}^\circ\text{F}$ ).
Long-Term Temperature Resistance (Continuous Operating): The maximum temperature the tape will experience for the majority of its life. Most standard VHB™ tapes (e.g., 4900 Series) handle up to $\text{93}^\circ\text{C}$ ( $\text{200}^\circ\text{F}$ ).
Short-Term Temperature Resistance (Minutes/Hours): The maximum temperature the tape can survive for brief periods. Most standard VHB™ tapes can survive up to $\text{150}^\circ\text{C}$ ( $\text{300}^\circ\text{F}$ ).

The High-Temperature Exception: GPH Series

If your application involves pre-assembly before a liquid paint or powder coating bake cycle, you must select a specialized high-temperature VHB.

VHB GPH Series (General Purpose High Temperature): This family is designed to withstand continuous long-term exposure up to $\text{150}^\circ\text{C}$ ( $\text{300}^\circ\text{F}$ ) and short-term exposure up to $\text{230}^\circ\text{C}$ ( $\text{450}^\circ\text{F}$ ), making it mandatory for use in high-heat processes like powder coating.

Step 3: Determine Required Strength and Load Management (Thickness)

Unlike mechanical fasteners, VHB™ tape manages stress by distributing the load across the entire bond line and absorbing movement via its viscoelastic foam core. The tape's thickness is key to managing two types of load:

A. Static Load Management (Holding Weight)

To calculate the required tape area for a static load (e.g., hanging a permanent sign), you must use the manufacturer's Static Shear Strength data (e.g., holding 1000g at $\text{23}^\circ\text{C}$ ). Always include a significant Safety Factor (often 3:1 or 5:1) in your calculations to ensure long-term reliability.

B. Dynamic Load Management (Thermal Expansion)

Materials expand and contract at different rates (Coefficient of Linear Thermal Expansion - CLTE). The viscoelastic foam must be thick enough to absorb this differential movement without failing.

Substrate Match	Thickness Rule
Similar Substrates (e.g., metal to metal)	Thinner tape is suitable (e.g., 0.6 mm)
Dissimilar Substrates (e.g., plastic to metal)	Thicker tape is required. The tape must be able to move with the substrates. Rule of Thumb: Use a tape thickness that is at least 3 times the anticipated differential movement, or consider thicker tapes (1.1 mm to 3.0 mm) for large components.
Textured/Mismatched Surfaces	Use a thicker, more conformable tape (e.g., 5900 Series) to ensure the adhesive completely fills the surface irregularities and achieves maximum wetting out.

Step 4: Final Considerations (Aesthetics and Specialty)

After determining the technical needs, the last step is to choose based on appearance and specific functional requirements:

Requirement	Recommended VHB™ Option	Key Benefit
Invisible Bond on Glass/Clear Materials	4910/4905 Series	Transparent, solid acrylic adhesive for glass, polycarbonates, and acrylics.
Bonding Powder Coated Paints	5900 Series (Black)	Highly conformable and formulated with a modified acrylic adhesive optimized for powder coatings and medium-low surface energy paints.
Cost-Effective/General Use	RP Series (Grey/White)	Good all-around performance for a wide range of substrates and is often a more economical choice for large-scale production.
Flame Retardancy	5958FR	Meets specific safety standards (e.g., FAR 25.853) required for aerospace or public transportation applications.

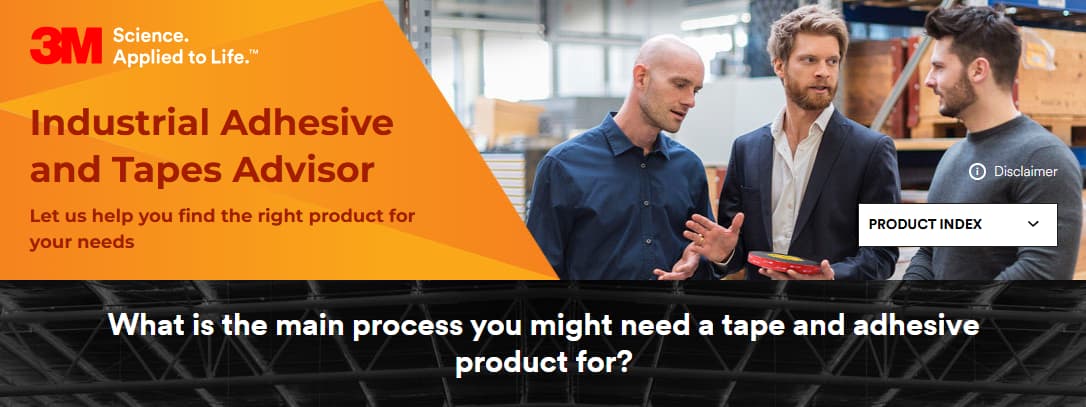

VHB Tape Selection Tool

If it all still feels overwhelming, our specialist tape store Viking Tapes has a guided tool that will help you find the exact tape you need, just click the link below to get started:
